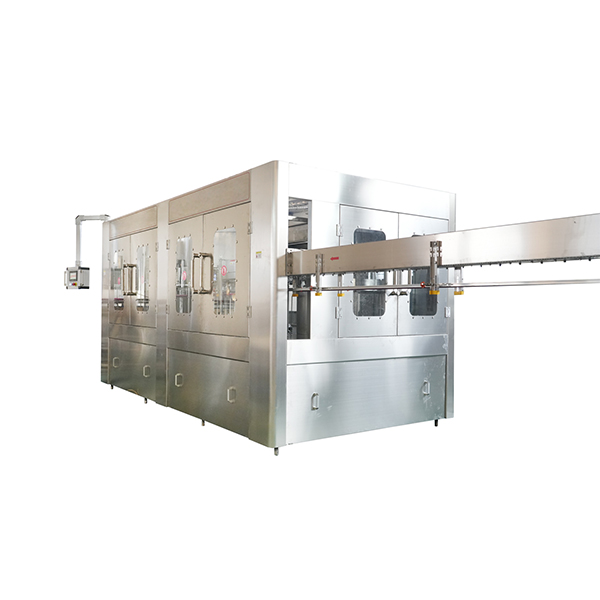

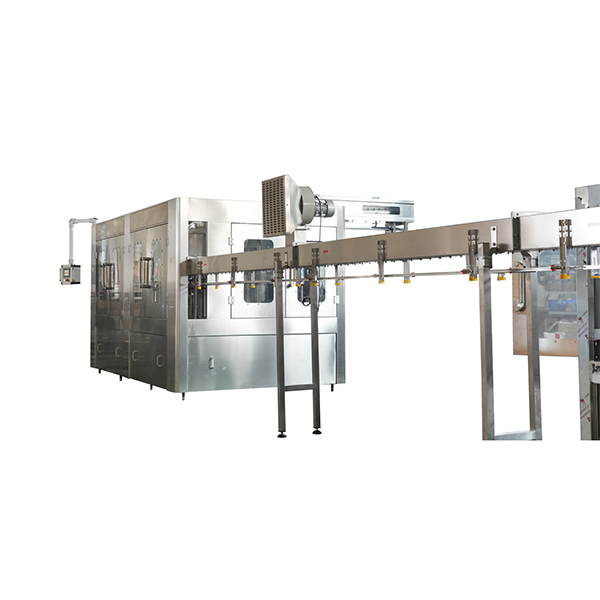

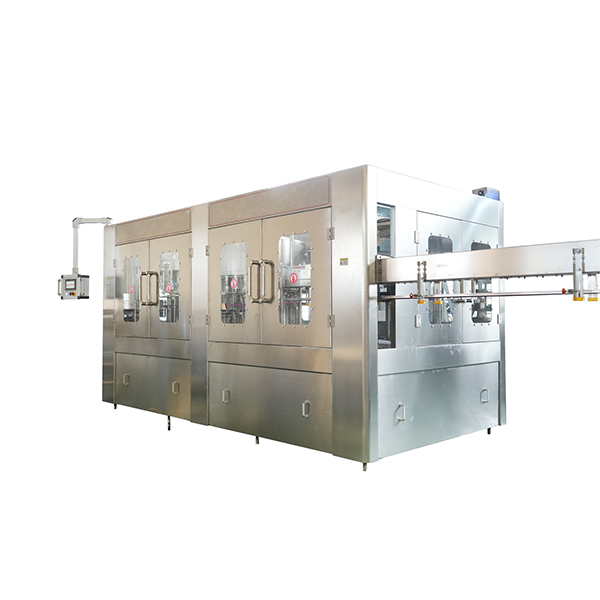

15000bph bottled water filling line adopts 32/32/10 washing filling capping 3 in 1 machine .The equipment to absorb the same type of foreign advanced technology products, stable performance, safe and reliable. Applicable to large and medium-sized beverage plant water and non-gas drinks in the high-speed filling.
Main parameters
Model | VACGF-15000 |
Working service points | Washing 32,filling 32, capping 10 |
Rated output | 15000bph(500ml) |
air pressure | 0.7MPa |
Air consumption | 0.8m3/min |
main motor power | 4KW |
Rinsing pump power | 0.37KW |
Cap sorting power | 0.37KW |
Dimension | L4400-W2300-H2500（real size according to the finished products ） |
Total weight | Approx 5300kg |
Features of our filling machine
1. air conveyor fan with air filter net ,avoid the dust from air
2. washing nozzel use ss formed pipes ,long time use
3. fast filling valve
4. big screw capping heads
5. solid windows and doors
6. high quality material ,high configuration and good manufacture process
Main configuration
PLC | MITSUBISHI |
TOUCH SCREEN | CHINA,TAIWAN ,weinview |
Contactor | SCHNEIDER |
PUMP | CNP |
MOTOR | CHINA BRAND |
15000bph bottled water filling line adopts 32/32/10 washing filling capping 3 in 1 machine .The equipment to absorb the same type of foreign advanced technology products, stable performance, safe and reliable. Applicable to large and medium-sized beverage plant water and non-gas drinks in the high-speed filling.
Main parameters
Model | VACGF-15000 |
Working service points | Washing 32,filling 32, capping 10 |
Rated output | 15000bph(500ml) |
air pressure | 0.7MPa |
Air consumption | 0.8m3/min |
main motor power | 4KW |
Rinsing pump power | 0.37KW |
Cap sorting power | 0.37KW |
Dimension | L4400-W2300-H2500（real size according to the finished products ） |
Total weight | Approx 5300kg |
Features of our filling machine
1. air conveyor fan with air filter net ,avoid the dust from air
2. washing nozzel use ss formed pipes ,long time use
3. fast filling valve
4. big screw capping heads
5. solid windows and doors
6. high quality material ,high configuration and good manufacture process
Main configuration
PLC | MITSUBISHI |
TOUCH SCREEN | CHINA,TAIWAN ,weinview |
Contactor | SCHNEIDER |
PUMP | CNP |
MOTOR | CHINA BRAND |
