4000 BPH Water Filling Machine Water Bottling Machine

VACGF series pure water filling machine focuses on washing, filling and capping to realize washing, filling and capping to shorten the contact time between the material and the outside world, improve the sanitary conditions, production capacity, economic benefits, mainly used for pure water, mineral water, mountain spring water filling. This series of filling machine design is excellent,adopts high quality main material of SUS manufacturing precision, simple operation, high degree of automation, is reliable and advanced pure water filling machine. The series filling machine with CE certification .

Availability:
Quantity:
  • VACGF-4000

  • GM

  • 8422301090

VACGF series pure water filling machine focuses on washing, filling and capping to realize washing, filling and capping to shorten the contact time between the material and the outside world, improve the sanitary conditions, production capacity, economic benefits, mainly used for pure water, mineral water, mountain spring water filling. This series of filling machine design is excellent,adopts high quality main material of SUS manufacturing precision, simple operation, high degree of automation, is reliable and advanced pure water filling machine. The series filling machine with CE certification .


Application: PET bottles of pure drinking water, mineral water, mineral water, mountain spring water and other gas free products production.


Features:

Suspended card bottle mouth air transport into the bottle structure.

Adopt stainless steel bottle clip and stainless steel water divider.

No need to adjust the height of the equipment, only need to replace a small number of guard plate and guide plate, easy to change the bottle type.

Adopt normal pressure quick filling valve.

Adopt high torque magnetic capping head.

PLC programmable automation control technology

Touch screen control

Sperated electrical control carbine

The key electrical components are international famous brands.

drawing of VACGF4000

VACGF4000

Parameters

model

VACGF3000

VACGF4000

VACGF6000

VACGF10000

VACGF15000

VACGF18000

VACGF20000

Washer/filler/capper heads

8-8-3

14-12-5

18-18-6

24-24-8

32-32-10

40-40-12

50-50-15

Filling liquid

Water without gas

Water without gas

Water without gas

Water without gas

Water without gas

Water without gas

Water without gas

Theory speed



2500-3300

B/H

500ml  standard

3500-4300

B/H

500ml  standard

5500-6800

B/H

500ml  standard

9500-12000

B/H

500ml  standard

13000-15000

B/H

500ml  standard

16000-18000

B/H

500ml  standard

20000-24000

B/H

500ml  standard

Bottle height mm

150-340

150-340

150-340

150-340

150-340

150-340

150-340

Sparying pressure

2-3Kg

2-3kg

2-3kg

2-3kg

2-3kg

2-3kg

2-3kg

      Bottle diameter mm

50-110

50-110

50-110

50-110

50-110

50-110

50-110

Compressed air

MPA

0.3-0.7

0.3-0.7

0.3-0.7

0.3-0.7

0.3-0.7

0.3-0.7

0.3-0.7

 Mian motor power KW

1.5

1.5

2.2

3

5.5

7.5

11

Dimension



1.9*1.5*2.2

2.0*1.6*2.2

2.6*1.8*2.2

3.1*2.2*2.2

3.8*2.8*2.2

3.8*2.8*2.5

5.4*3.3*2.5

Weight KG

1500

1700

2700

3500

4500

5500

7000




video for 4000bph bottled water filling machine

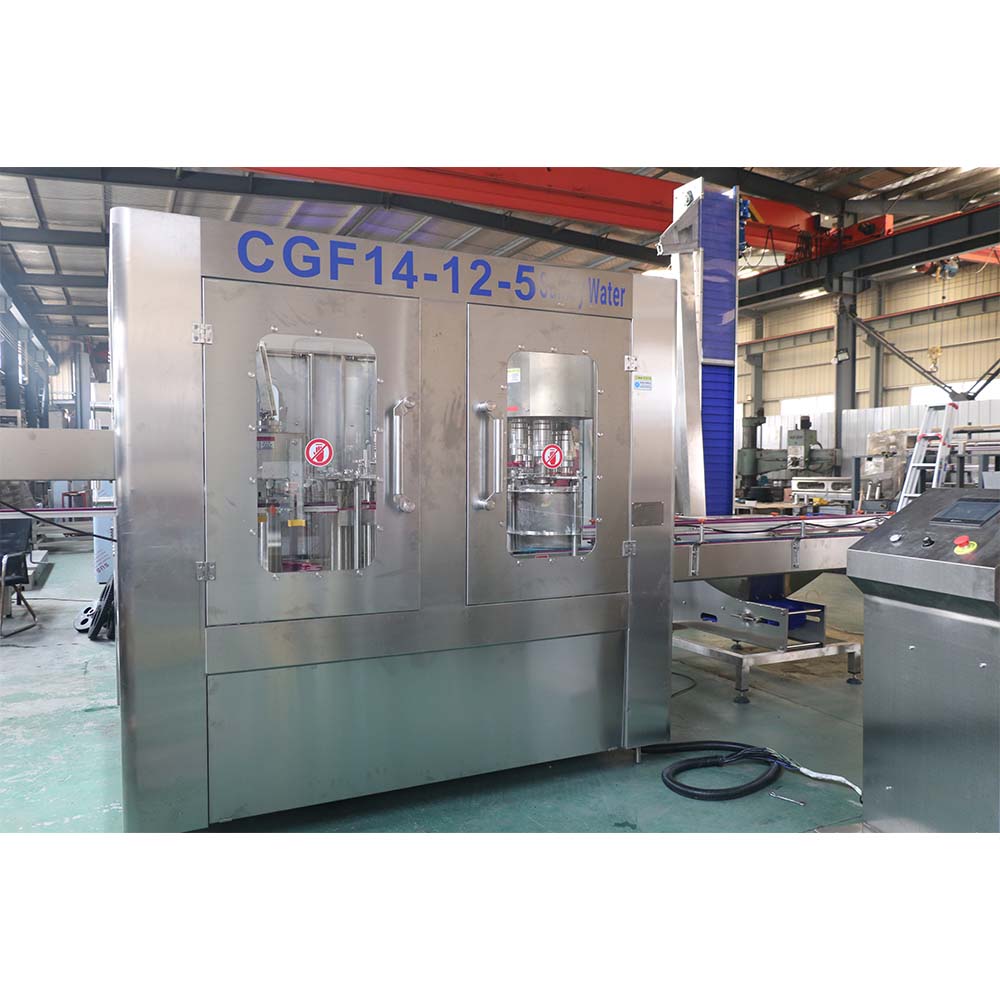

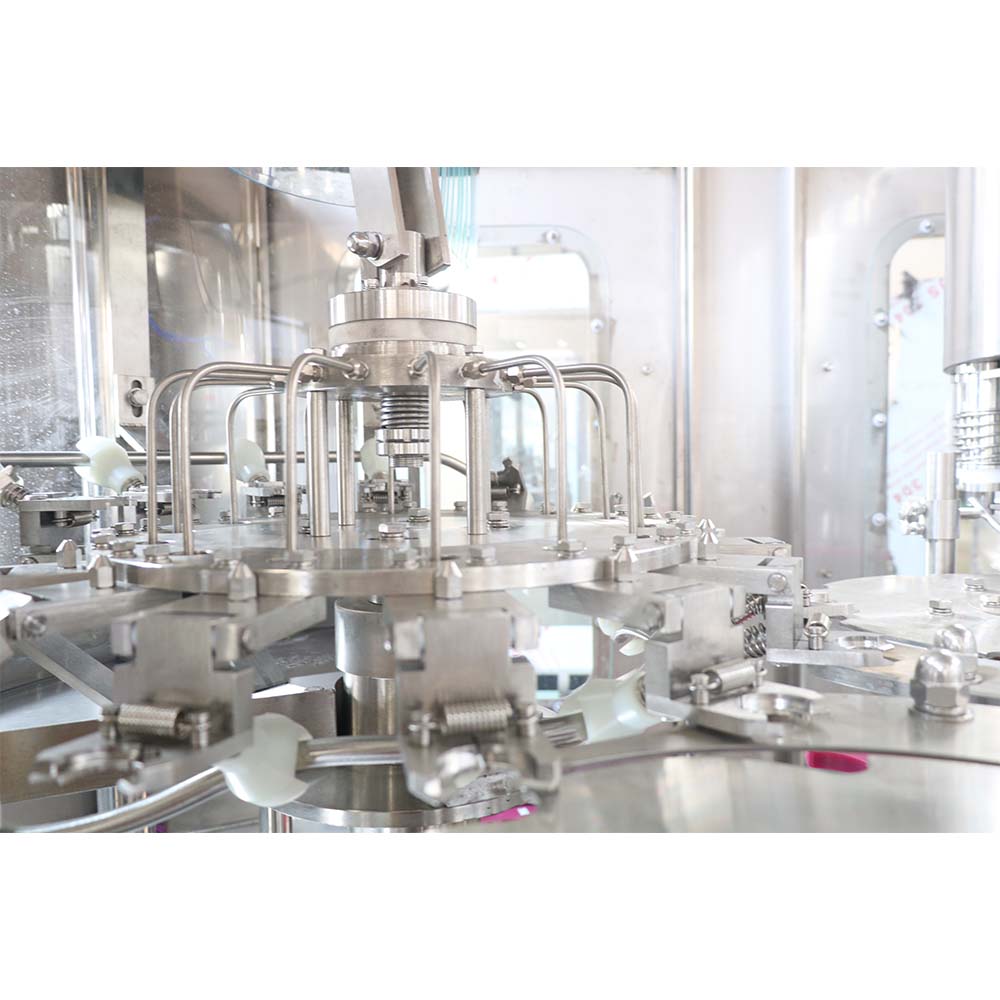

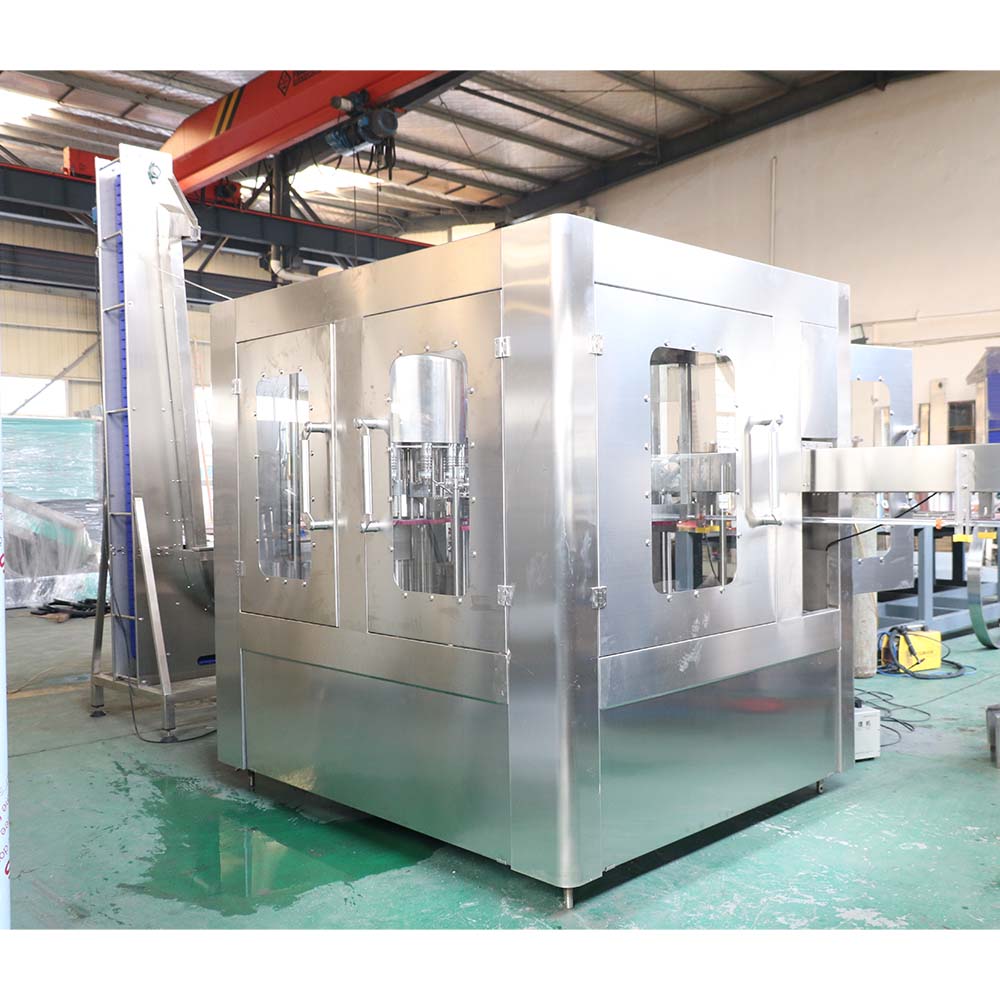

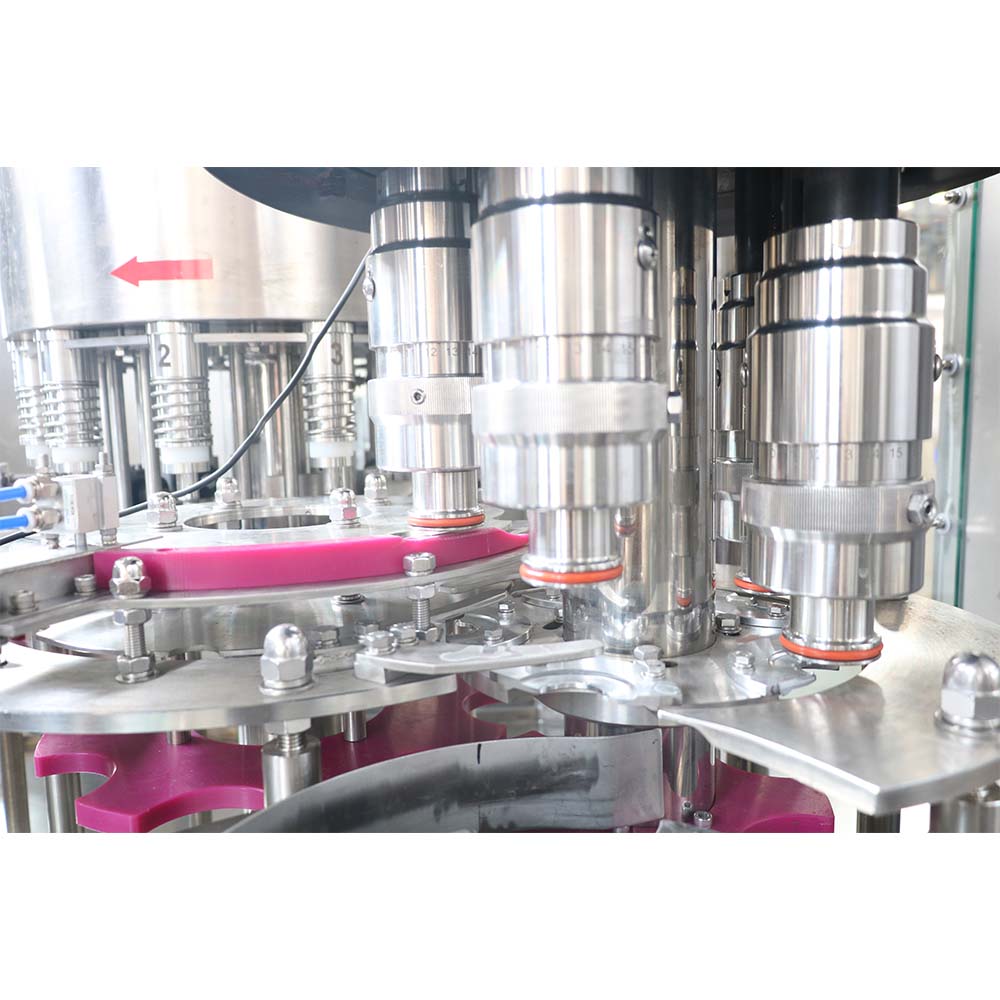

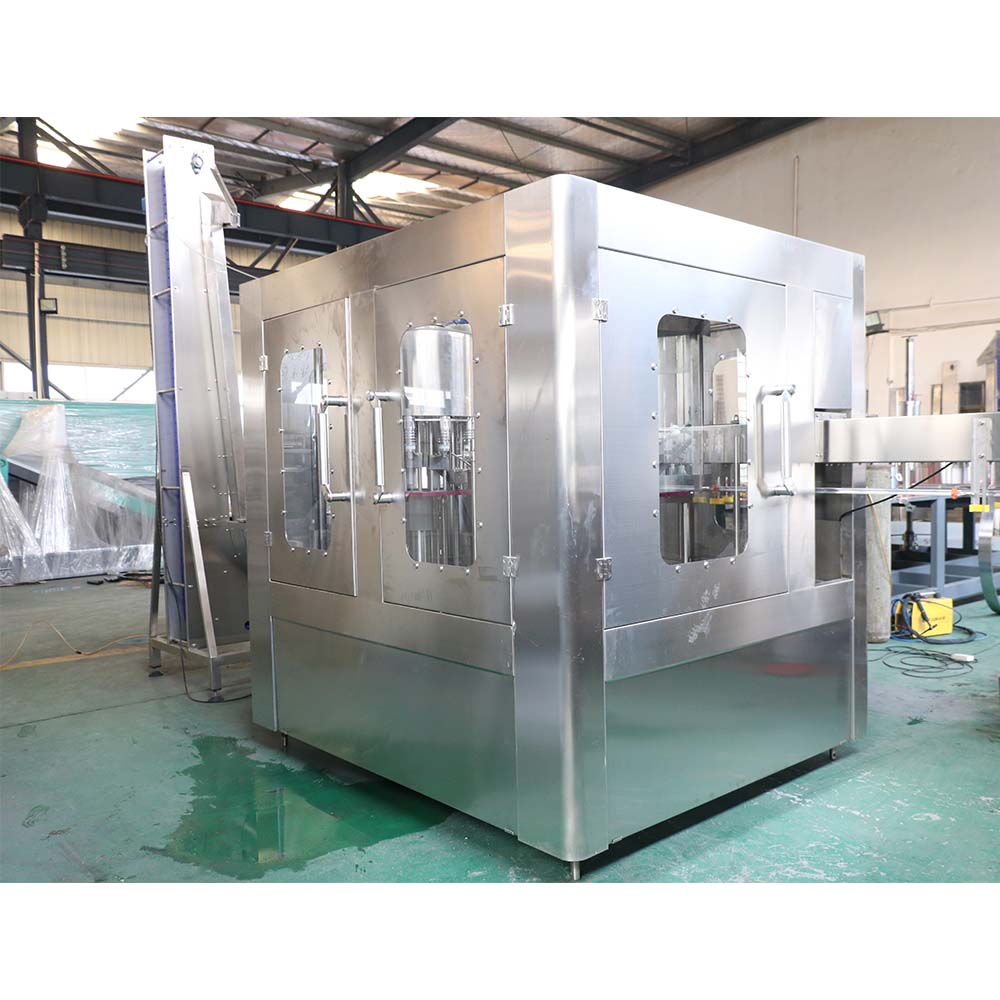

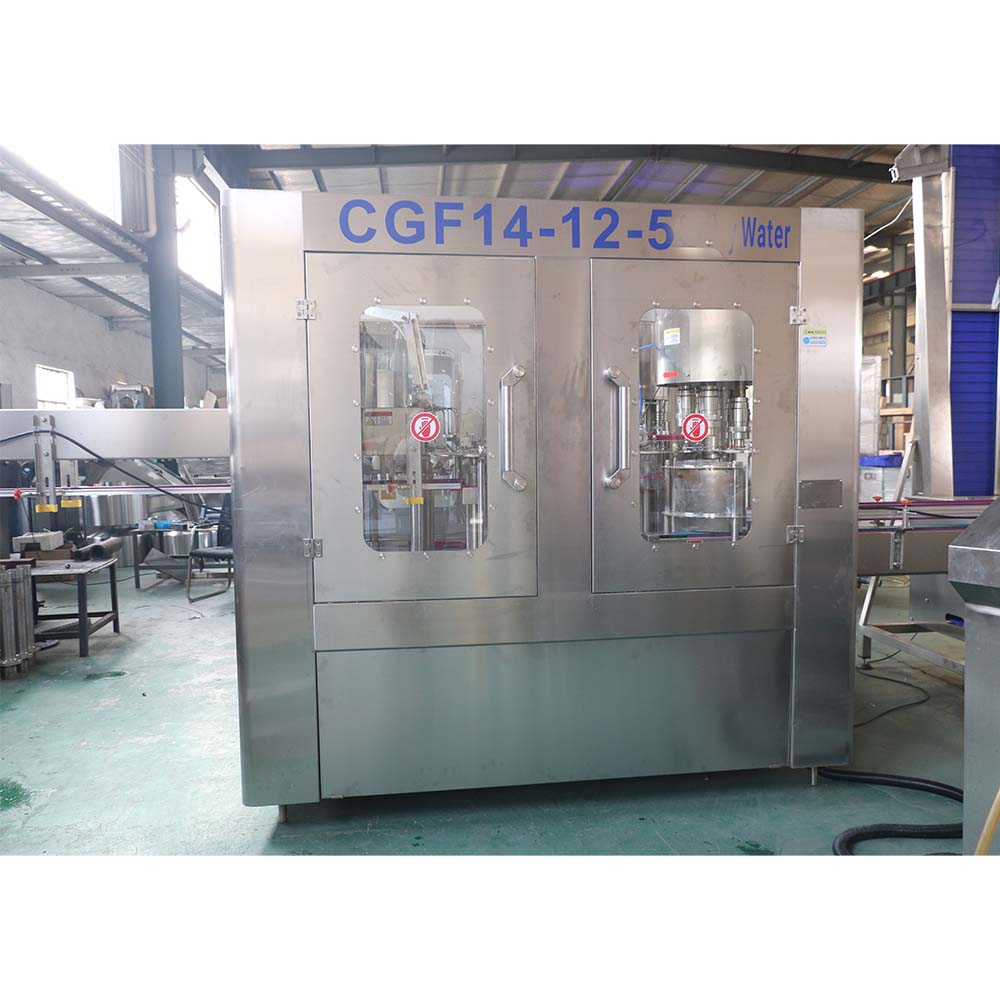

filling machine photos for reference

14-12-5

filling

12-6

12-8
