VACGF-SERIES
GM

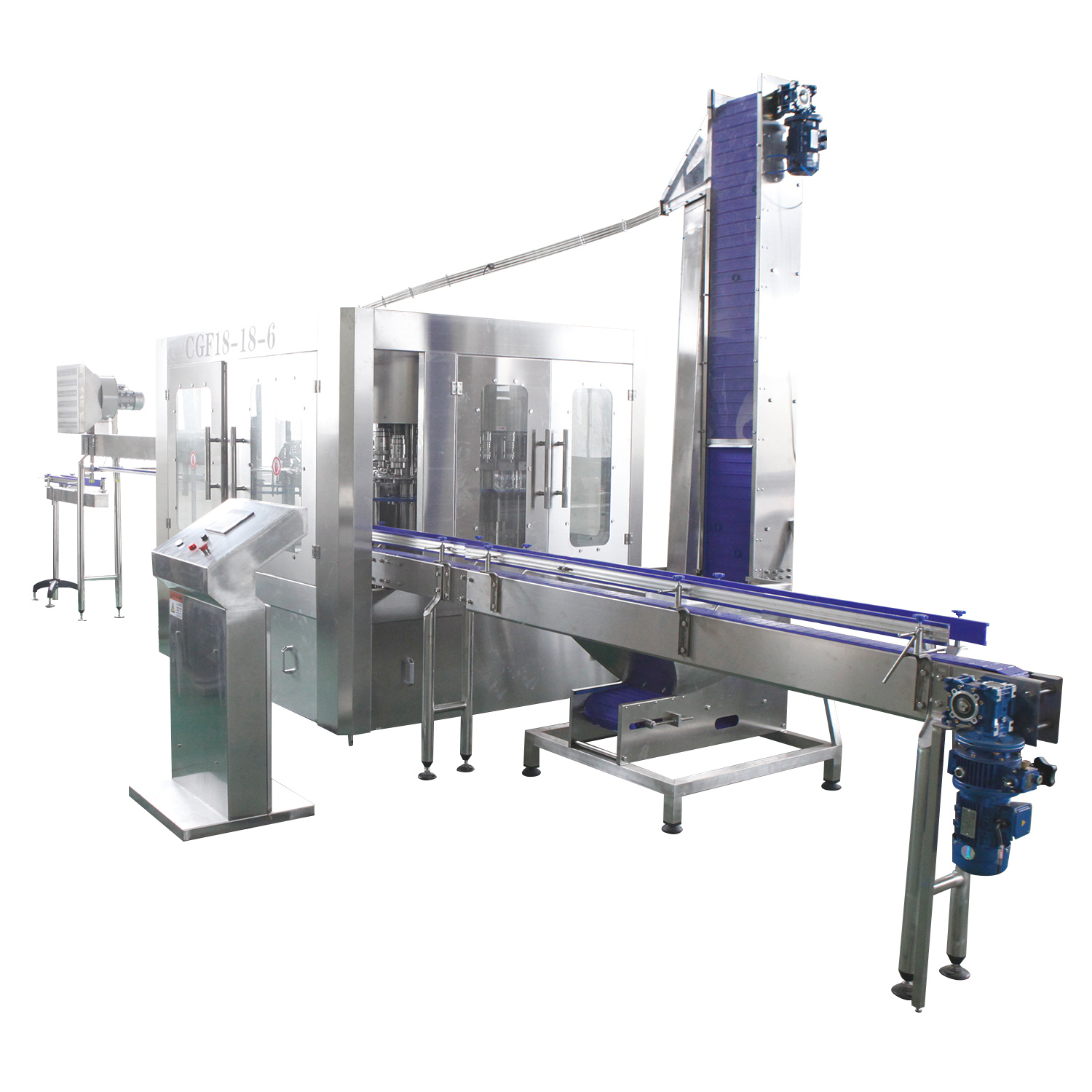

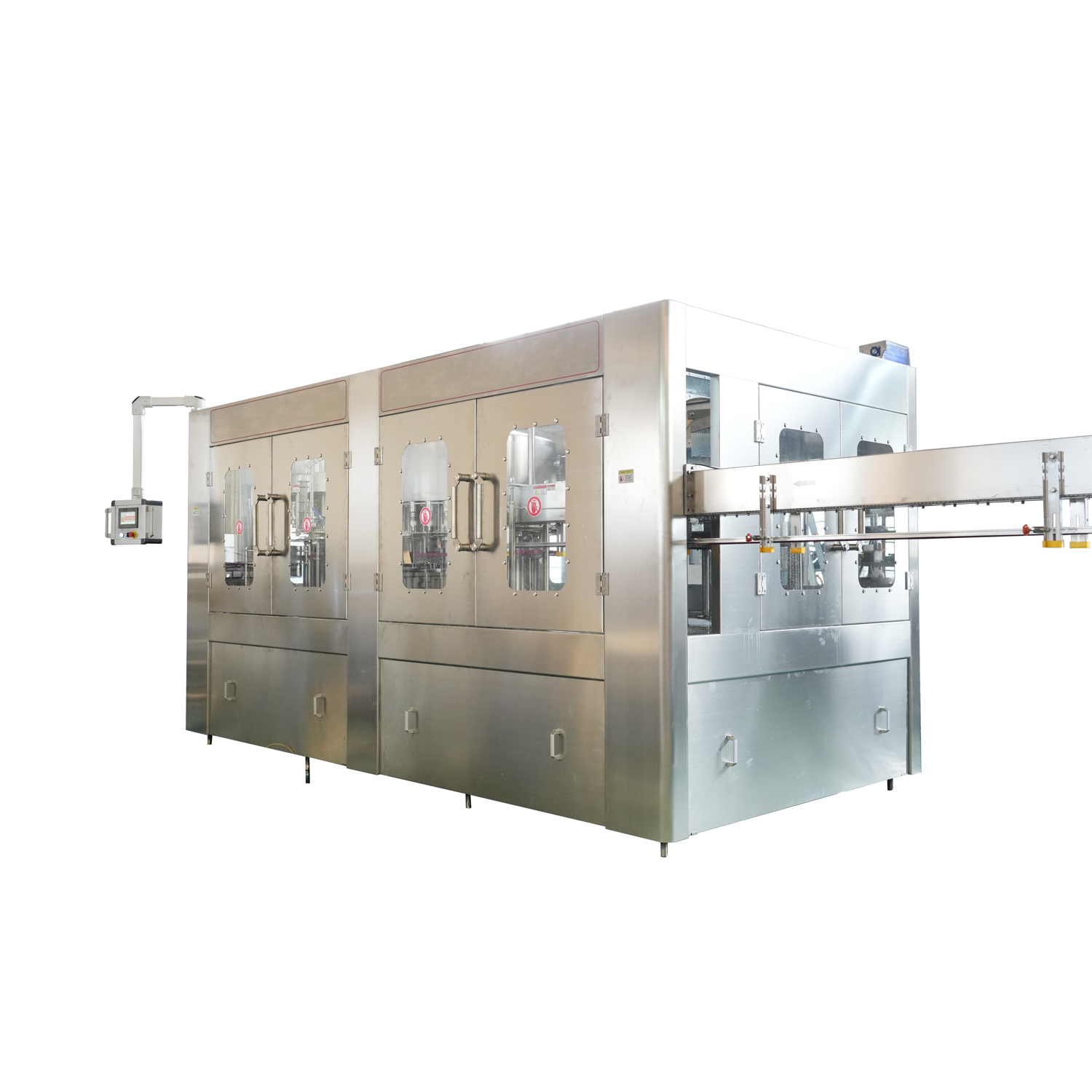

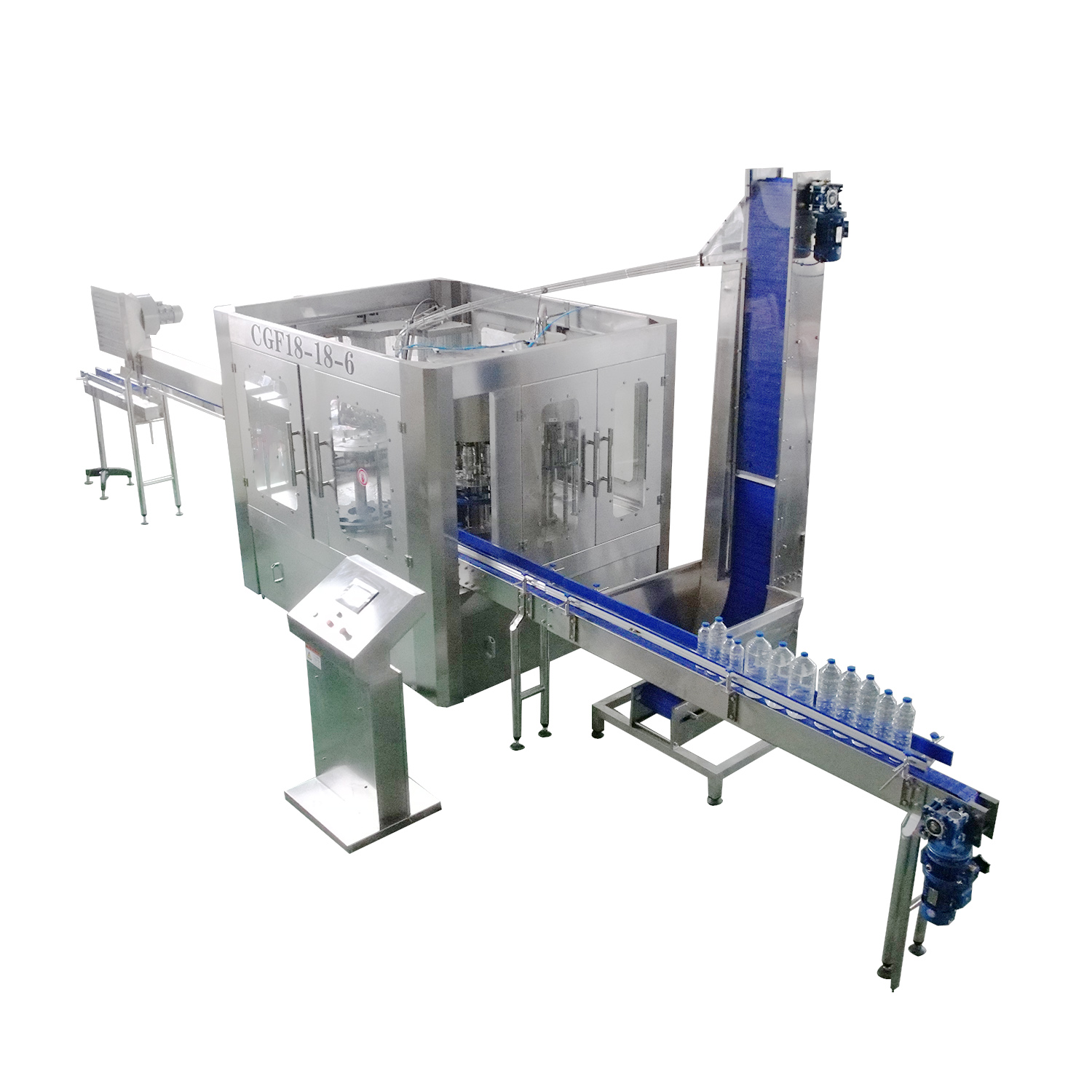

automatic plastic Bottled water filling 3in1 machine
VACGF series pure water filling machine focuses on washing, filling and capping to realize washing, filling and capping to shorten the contact time between the material and the outside world, improve the sanitary conditions, production capacity, economic benefits, mainly used for pure water, mineral water, mountain spring water filling. This series of filling machine design is excellent,adopts high quality main material of SUS manufacturing precision, simple operation, high degree of automation, is reliable and advanced pure water filling machine. The series filling machine with CE certification .
Application: PET bottles of pure drinking water, mineral water, mineral water, mountain spring water and other gas free products production.
Features:
Suspended card bottle mouth air transport into the bottle structure.
Adopt stainless steel bottle clip and stainless steel water divider.
No need to adjust the height of the equipment, only need to replace a small number of guard plate and guide plate, easy to change the bottle type.
Adopt normal pressure quick filling valve.
Adopt high torque magnetic capping head.
PLC programmable automation control technology
Touch screen control
Sperated electrical control carbine
The key electrical components are international famous brands.
Parameters
model | VACGF3000 | VACGF4000 | VACGF6000 | VACGF10000 | VACGF15000 | VACGF18000 | VACGF20000 |
Washer/filler/capper heads | 8-8-3 | 14-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-15 |
Filling liquid | Water without gas | Water without gas | Water without gas | Water without gas | Water without gas | Water without gas | Water without gas |
Theory speed | 2500-3300 B/H 500ml standard | 3500-4300 B/H 500ml standard | 5500-6800 B/H 500ml standard | 9500-12000 B/H 500ml standard | 13000-15000 B/H 500ml standard | 16000-18000 B/H 500ml standard | 20000-24000 B/H 500ml standard |
Bottle height mm | 150-340 | 150-340 | 150-340 | 150-340 | 150-340 | 150-340 | 150-340 |
Sparying pressure | 2-3Kg | 2-3kg | 2-3kg | 2-3kg | 2-3kg | 2-3kg | 2-3kg |
Bottle diameter mm | 50-110 | 50-110 | 50-110 | 50-110 | 50-110 | 50-110 | 50-110 |
Compressed air MPA | 0.3-0.7 | 0.3-0.7 | 0.3-0.7 | 0.3-0.7 | 0.3-0.7 | 0.3-0.7 | 0.3-0.7 |
Mian motor power KW | 1.5 | 1.5 | 2.2 | 3 | 5.5 | 7.5 | 11 |
Dimension | 1.9*1.5*2.2 | 2.0*1.6*2.2 | 2.6*1.8*2.2 | 3.1*2.2*2.2 | 3.8*2.8*2.2 | 3.8*2.8*2.5 | 5.4*3.3*2.5 |
Weight KG | 1500 | 1700 | 2700 | 3500 | 4500 | 5500 | 7000 |
