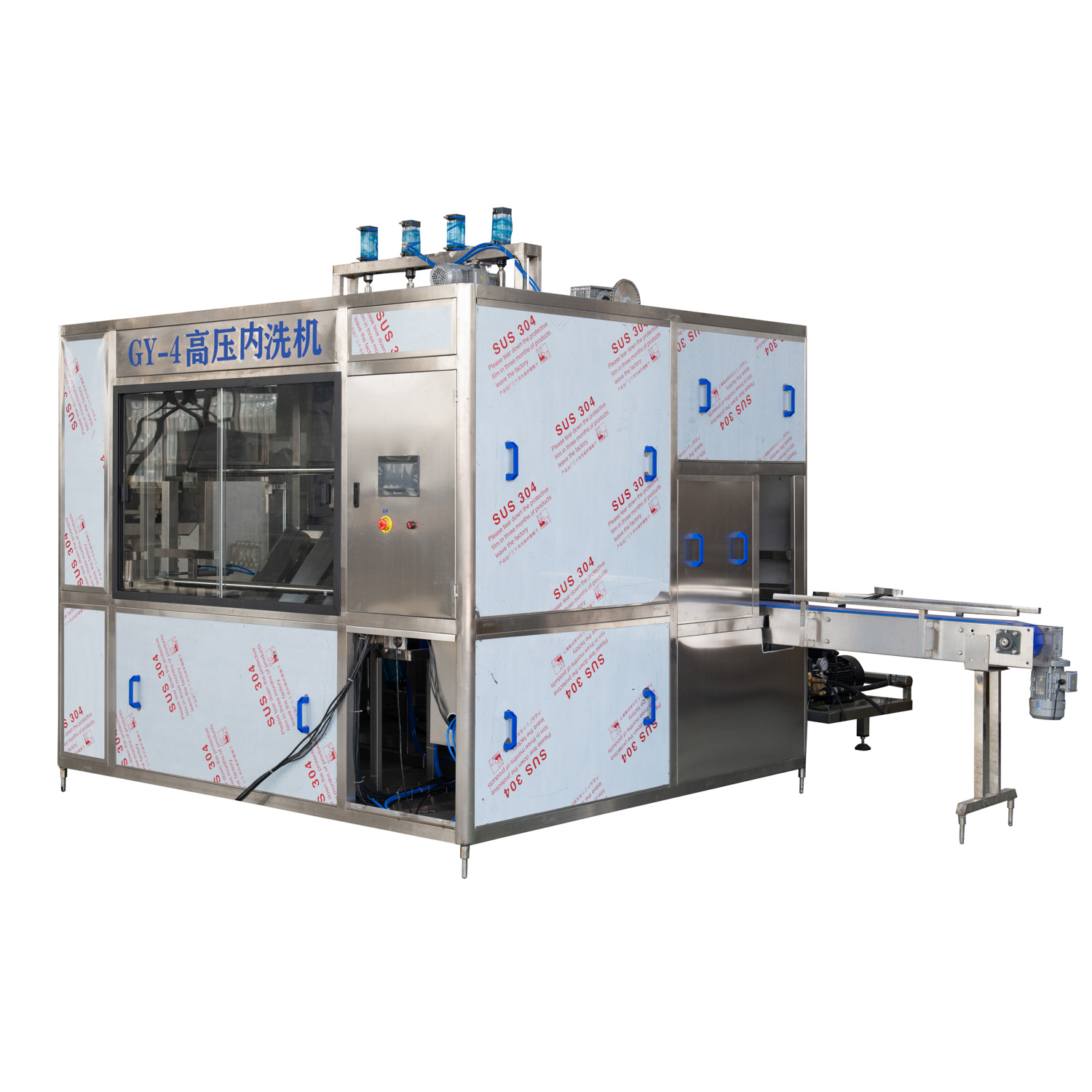

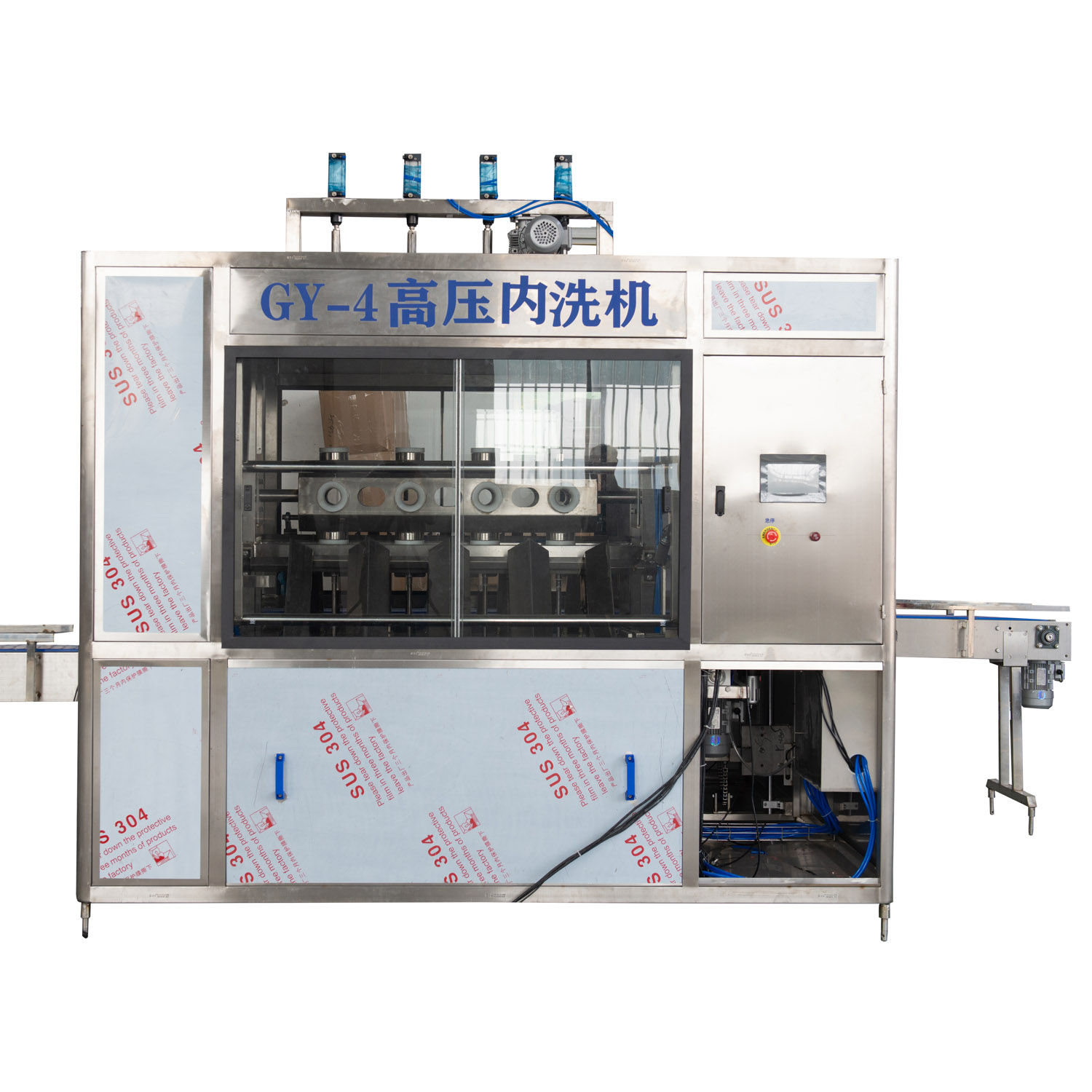

Automatic High Pressure 5gallon Inner Washing Machine

high pressure inner washing cleaning machine for 5gallon bottles ,
Availability:
Quantity:
  • NH-Series

  • GM

  • 8422

Automatic high pressure washing machine/inner washing amchine

1. Product introduction:
  The NH-Series series shaft-type automatic high-pressure internal washing machine is an original rotary shaft washing process designed by our company. It is mainly composed of a barrel pushing mechanism, a rotating shaft mechanism, a barrel outlet mechanism, a high-pressure washing mechanism, a control system, etc. It can carry out a three-dimensional all-round washing inside the bucket and is currently the best choice for bottled water production enterprises. When the five-gallon barrel is in contact with the high-pressure spray head, the spray head moves up and down, and the auto-movement of the barrel achieves the effect of scrubbing. The barrel neck, bottle body, bottle bottom and other parts can be fully cleaned. Dirt in the barrel. The whole is made of high-quality stainless steel, which is corrosion-resistant and easy to clean. The main electrical components are all famous brand products. The machine is beautiful in appearance, compact in structure, high in working efficiency, stable and reliable in operation, and high in degree of automation.
2. Working principle:
   After the photoelectric count reaches the predetermined number, the empty barrel automatically enters the pending position of the high-pressure internal washing machine under the thrust, reaches the predetermined position under the action of the cylinder, and reaches the internal washing position through the movement of the rotating shaft by 90 degrees. The equipment starts high-pressure internal washing operation After the barrel washing is completed, the inner washing station is sent out through a 90-degree rotation of the shaft. At the same time, the next group of buckets enters the inner washing station. The machine uses two conveyor belts for the bucket and the bucket to run separately, which greatly saves working time and has a novel structure. , Practical performance.

Main parameters and models for high pressure washing machine

model NH-2 NH-3 NH-4 NH-6 NH-7 NH-8 NH-10
theory capacity 300bph 450bph 600bph 900bph 1000bph 1200bph 1500bph
suitable bottle  5gallon 5gallon 5gallon 5gallon 5gallon 5gallon 5gallon
voltage 380V.3PH,50HZ,  380V.3PH,50HZ,  380V.3PH,50HZ,  380V.3PH,50HZ,  380V.3PH,50HZ,  380V.3PH,50HZ,  380V.3PH,50HZ,
high pressure nozzle 2pcs 3pcs 4pcs 6pcs 7pcs 8pcs 10pcs
washing period 30s adjustable 30s adjustable 30s adjustable 30s adjustable 30s adjustable 30s adjustable 30s adjustable
nozzle up-down times 2times,adjustable 2times,adjustable 2times,adjustable 2times,adjustable 2times,adjustable 2times,adjustable 2times,adjustable
high pressure pump power 2*4KW 3*4KW 4*4KW 6*4KW 7*4KW 8*4KW 10*4KW
raw water pump power 0.37kw 0.37kw 0.75kw 0.75kw 0.75kw 0.75kw 0.75kw
washing pressure 20-80kg adjustable 20-80kg adjustable 20-80kg adjustable 20-80kg adjustable 20-80kg adjustable 20-80kg adjustable 20-80kg adjustable
shaft motor 0.37kw 0.37kw 0.37kw 0.37kw 0.37kw 0.75kw 0.75kw
chain motor 0.55kw 0.55kw 0.75kw 0.75kw 0.75kw 1.1kw 1.1kw
dimension 2.1x2.3x2.3m 2.4x2.3x2.3m 2.7x2.3x2.3m 3x2.3x2.3m 3.3x2.3x2.3m 3.6x2.3x2.3m 3.9x2.3x2.3m
