MDJ-1200
GM
8422

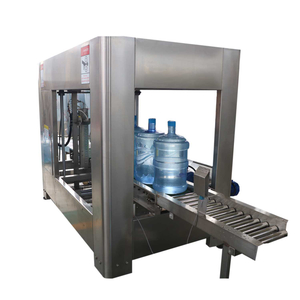

Automatic 5 gallon barrel palletizer
5 gallon barrel palletizer is special used in drinking water production line. it can improve the water factory production effective . the machine palletize the finished 5 gallon bottle water automatic and easy unload.
We can make the machine according to the customers requirements .
I. the process description
The stacker to complete the finished bottled water arrangement( 3*4)(4 * 4) (4 * 5), grabbed, significant savings in labor, according to the number of layers stacked such action, the entire exercise is completed by the PLC instruction.
Finished bottled water in the role of the signal switch, push the barrel cylinder count four or five push the barrel, complete the choreography lifting system decline, clip pick up the bucket to lift, go to 90 ° into the specified location, specify the layer through the PLC number.
II. the technical parameters for automatic 5gallon barrel palletizer
Item | Name | parameters |
1 | Dimensions | 2500 * 1500 * 2200mm |
2 | Power | 3KW |
3 | Gas Consumption | 0.3m ³ / min |
4 | Pressure | 0.6Mpa |
5 | Palletizing layers | Layer 3 |
6 | Size | 4 * 4 |
7 | Production capacity | 1200bph |
III. the configuration
Item | Name | brand |
1 | PLC | Japan's Mitsubishi |
2 | Inverter | Japan's Mitsubishi |
3 | Open space | Siemens |
4 | Contactor | Siemens |
5 | Frame | 10 # channel steel |
6 | Base | 15mm board |
7 | Pneumatic Original | Airtac |
8 | Photoelectric | Autonic |
9 | Motor | Zhejiang |
