Semi-automatic Bottle Group Wrapping Shrinking Machine

for group bottles ,cans in one package by shrink film .
Availability:
Quantity:
  • GMS-250
  • GM
  • 8422

Description of semi-automatic film wrapping shrinking machine .

This type of wrapping machine is designed for the small capacity packing factory .

Need manual arrange the bottles in group ,the cylinder will put the group bottle for putting film , the sealing knife will composed 2pcs film to be one bag ,then the packaged enter into the hot shrinking tunnel . after shrinking ,the bottles be packed .

main parameters of the wrapper

Model

GMS-250

Power

22kw (heating 18kw )

Dimension

4250x900x1900mm

Heating tunnel

2550x900x1600mm

Shrink film material

PE

Thermo-shrink tunnel max. temperature

160-260°( can be adjusted freely)

Max. Dimension of wrappage:

590X500X350MM

Voltage

380v.3ph,50hz

Weight

600kg

Capacity

Accrodingly to arrange bottle speed by manual .

As usually 2-5package/min


video for semi-auto wrapping packing machine

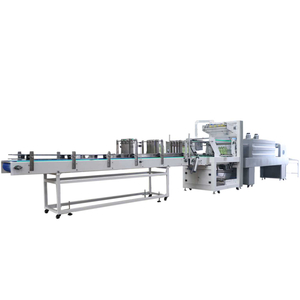

photos of packing machine for reference

wrapping machine

shrinking machine
