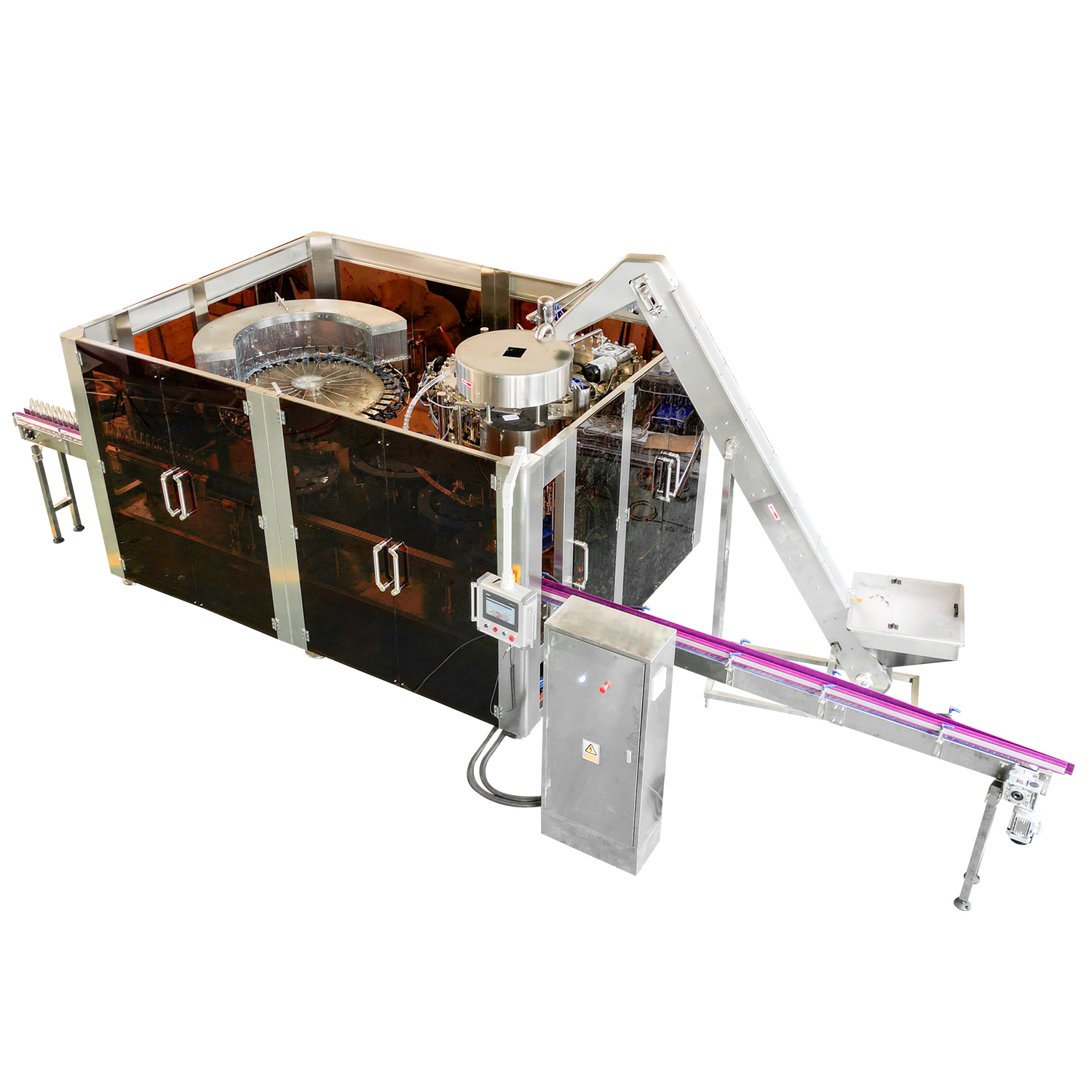

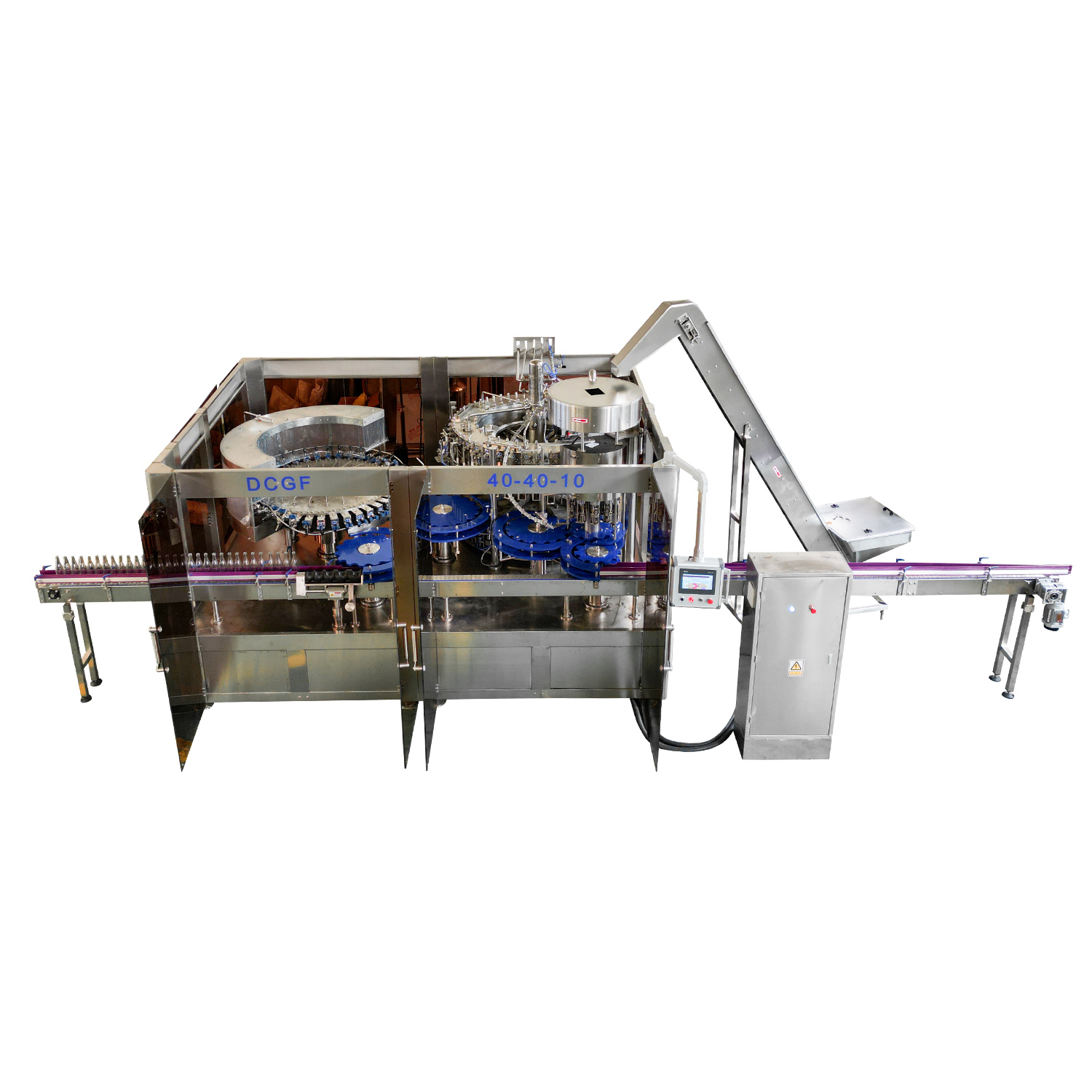

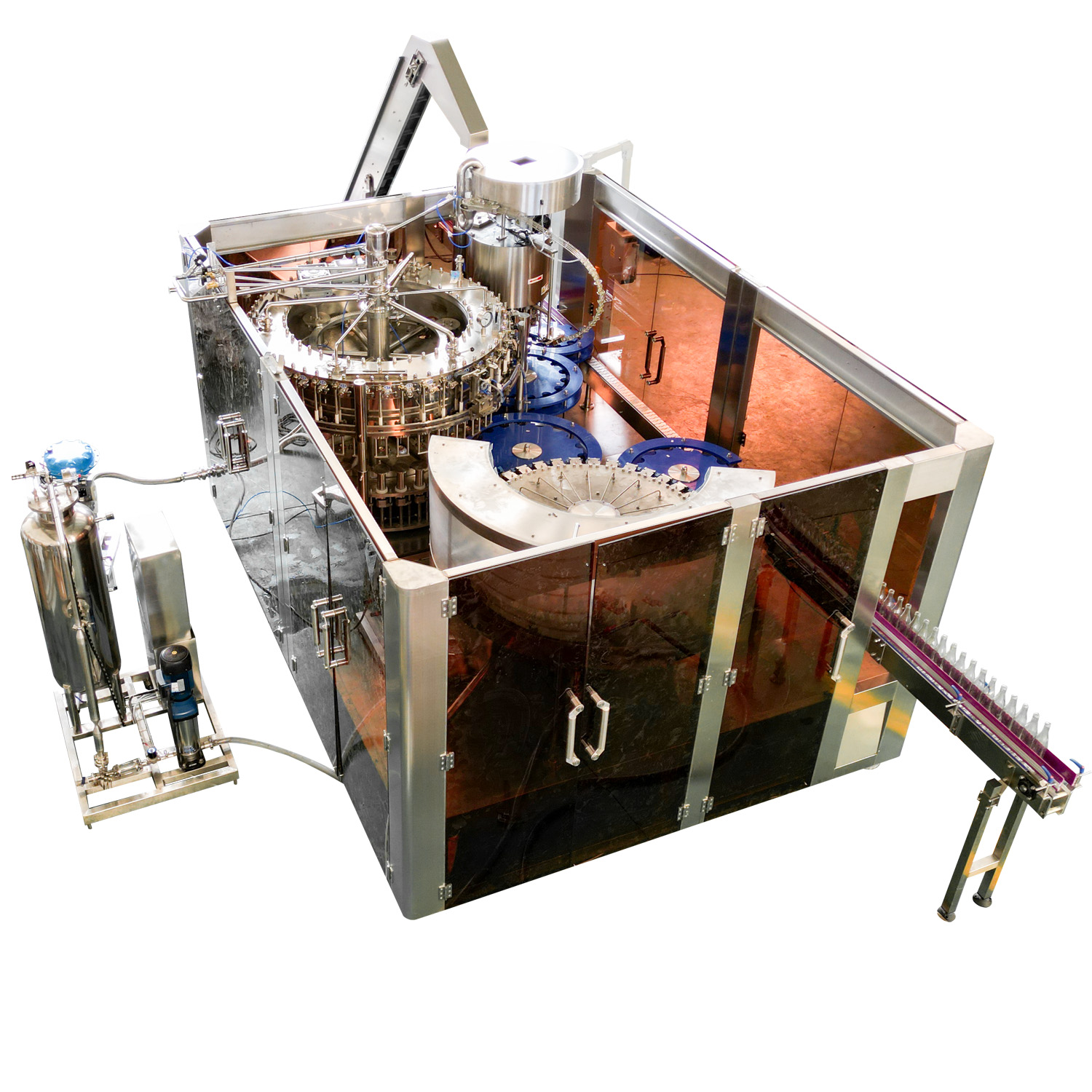

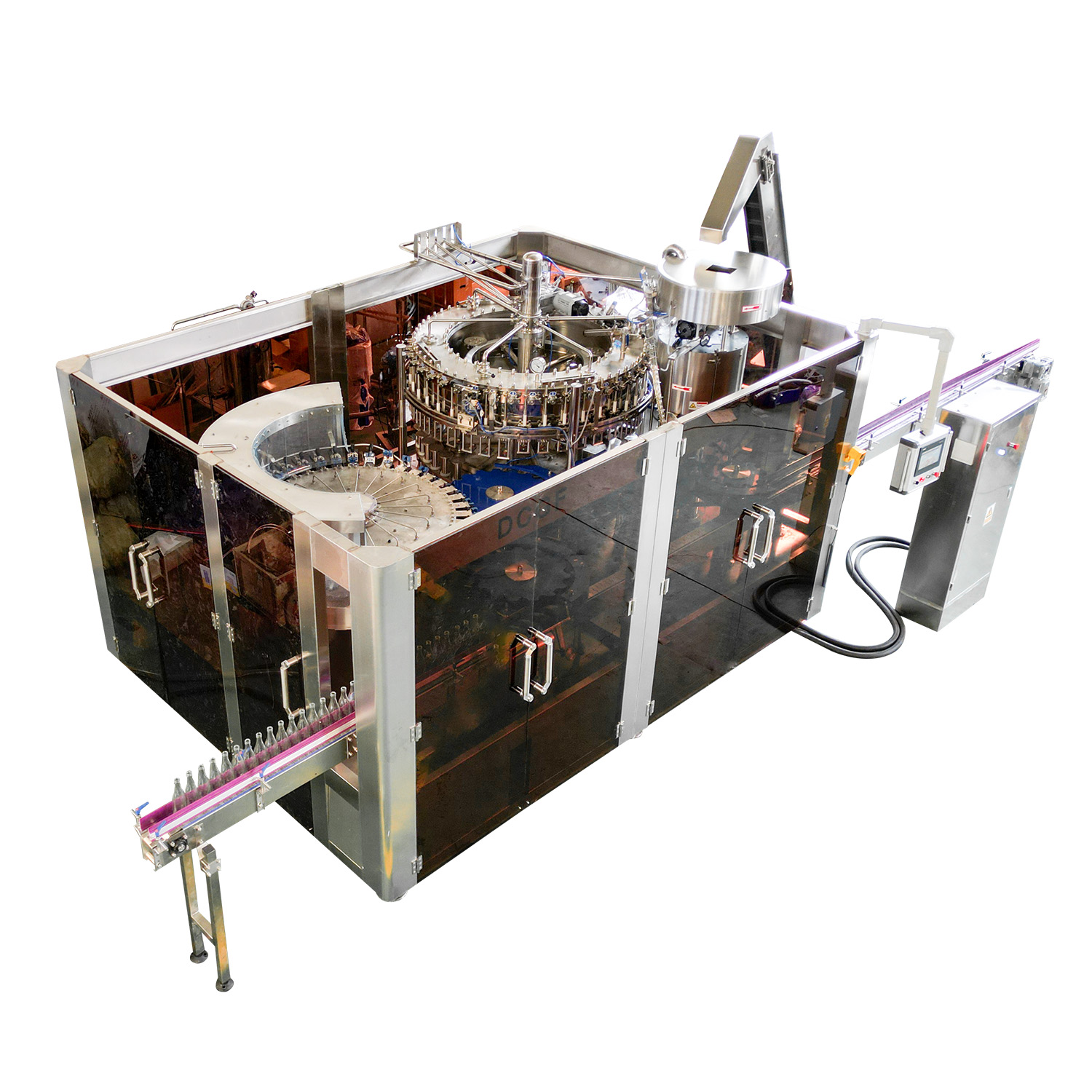

10000-12000bph 330ml Glass Bottle Carbonated Drink Filling 3in1 Machine

compact structure, perfect control system, easy operation, high degree of automation.
The parts in contact with the material are made of imported high-quality stainless steel, no process dead corners, easy to clean.
High precision, high speed quantitative filling valve, accurate liquid level without liquid loss, to ensure excellent filling quality.
Adopt efficient capping system, with perfect capping technology and protection device.
No need to adjust the height of the equipment to change the bottle shape, replace the bottle wheel can be realized, the operation is simple and convenient.
The filling system adopts the technology of bottling with flat bottom for stable transmission.
The control system has the functions of automatic water level control, missing cover detection, automatic stop of the bottle flushing and output counting.
Bottle washing system uses high-efficiency cleaning spray nozzles from American Spray Company to clean every part of the bottle.
The main electrical components, electronic control valves, frequency converters, etc. are imported to ensure the excellent performance of the whole machine.
All components of the gas circuit system are internationally renowned products.
Availability:
Quantity:
  • BCGFD40-40-10

  • GM

  • 842301090

Feature of 10000-12000bph 330ml Glass Bottle Carbonated Drink Filling 3in1 Machine

6

compact structure, perfect control system, easy operation, high degree of automation.

The parts in contact with the material are made of imported high-quality stainless steel, no process dead corners, easy to clean.

High precision, high speed quantitative filling valve, accurate liquid level without liquid loss, to ensure excellent filling quality.

Adopt efficient capping system, with perfect capping technology and protection device.

No need to adjust the height of the equipment to change the bottle shape, replace the bottle wheel can be realized, the operation is simple and convenient.

The filling system adopts the technology of bottling with flat bottom for stable transmission.

The control system has the functions of automatic water level control, missing cover detection, automatic stop of the bottle flushing and output counting.

Bottle washing system uses high-efficiency cleaning spray nozzles from American Spray Company to clean every part of the bottle.

The main electrical components, electronic control valves, frequency converters, etc. are imported to ensure the excellent performance of the whole machine.

All components of the gas circuit system are internationally renowned products.

Washing part

7.2

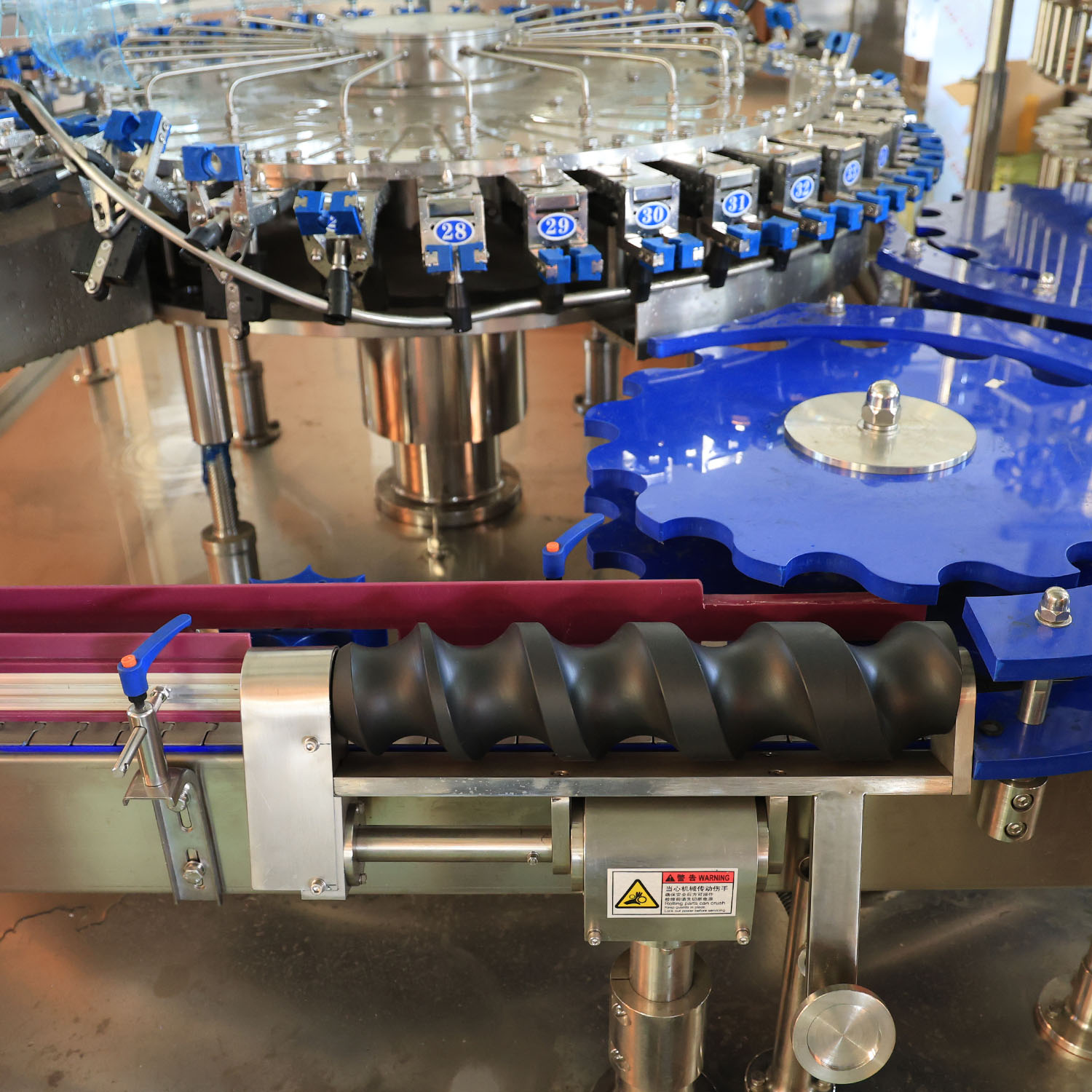

The bottle enters the bottle through the screw into the bottle punching machine, and the bottle clamp turns the bottle mouth along the punching guide rail up 180° to make the bottle mouth downward. The inner wall of the bottle is flushed in the specific area of the bottle flushing machine (determined by the water dispenser - the bottle flushing water is pumped into the water dispenser by the bottle flushing pump and then distributed from the water dispenser to the bottle flushing clamp through 24 pipes). After the bottle is rinsed and drained, the bottle clamp is held along the guide rail and then turned 180°, so that the bottle mouth is upward. The cleaned bottle is exported from the punching machine by the transition steel wheel and transferred to the next process - filling.

Filling part

19

The bottle entering the filling machine is lowered and lifted by the cylinder lifting mechanism under the action of the CAM. Filling using isobaric filling method, the filling valve first opens the carbon dioxide valve, pours carbon dioxide into the bottle and the bottle pressure is equal to start the material. Close the valve at the end of filling, and then exhaust. The filling process is completed after the cylinder CAM is lowered to leave the bottle mouth. After the filling is finished, the valve is closed and the gas is discharged. The cylinder is raised to enter the dial wheel into the capping machine. After filling the bottle card bottleneck transition round into the capping machine.

Capping part

33

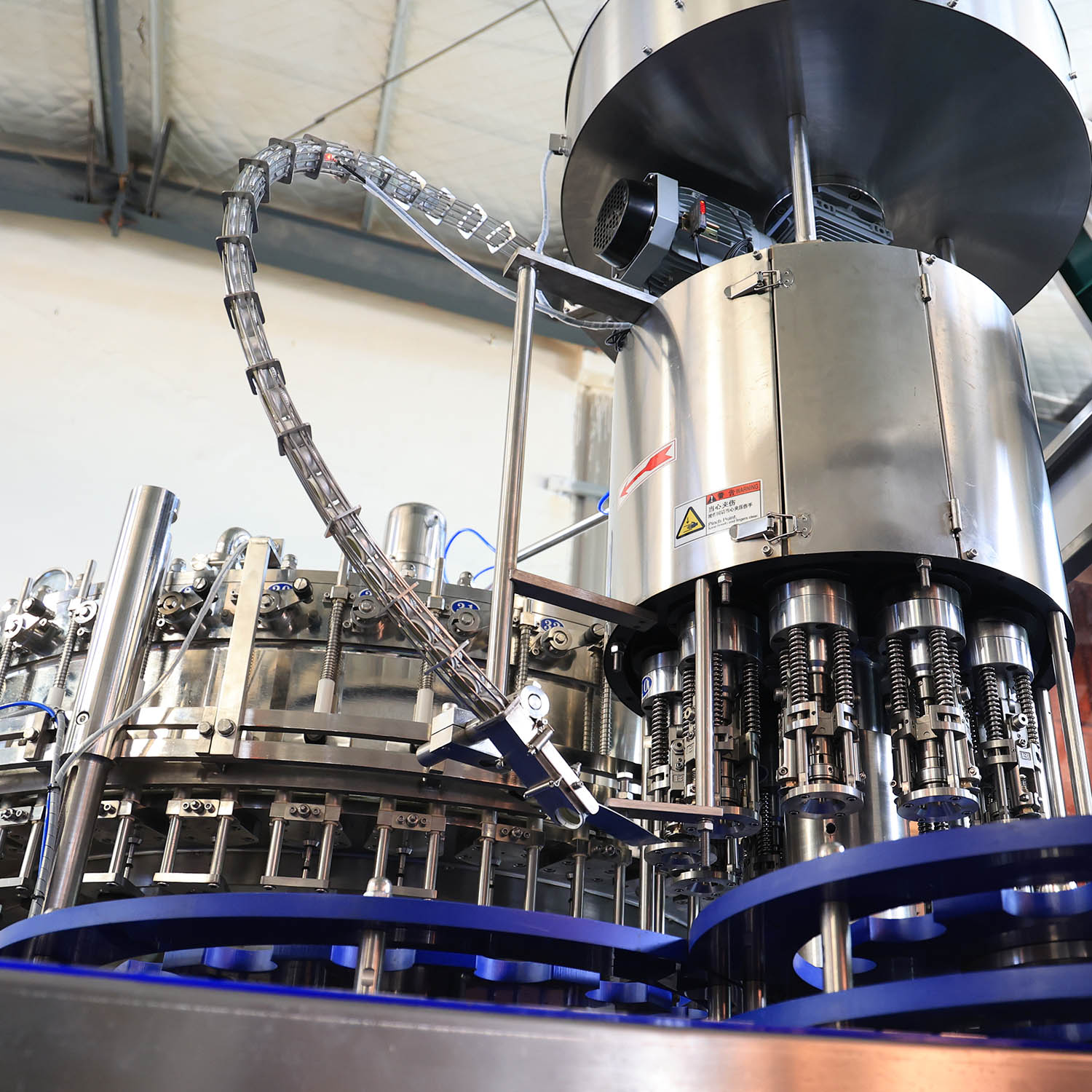

After filling, the bottle is fed into the aluminum capping machine through the dial wheel. The cap screw holds the bottom of the bottle stuck to the neck of the bottle to keep the bottle upright and prevent rotation. The capping head keeps revolution and rotation on the capping machine, and realizes the actions of capping, covering and removing under the action of the CAM to complete the whole capping process. The finished bottle is transferred from the capping machine to the outgoing bottle conveyor chain by the outgoing bottle wheel.

1. Filling system: This part is composed of juice filling part, cylinder part, filling valve, control ring, lifting cylinder, etc.

2, capping system: this part is composed of capping machine, waterfall capping device, falling cover guide rail, etc.

3, transmission system: this part adopts the transmission mode driven by the main motor gear, composed of the main transmission and transition gear.

4, conveying system: this part is composed of the wheel guide plate, conveying chain, etc.

5, electronic control system: this part adopts frequency control, PLC automatic control, touch screen operation.

Main parameter

working places

Washing 40 filling40 capping 10

Theory capacity

10000-12000BPH 330ml

Suitable bottle

diameter:60-85,height:160-260

Filling liquid

6t/h

filling machine main power

7.5KW

Washing power

0.75KW

Air compressor

0.7MPa

Air consumption

0.8M3/min

Cap sorting motor

0.37KW
