automatic beverage gas mixing machine 3000l/h

automatic beverage gas mixing machine 3000l/h, the machine with 3barrels
Availability:
Quantity:
  • QHS-3000
  • GM
  • 8422301090

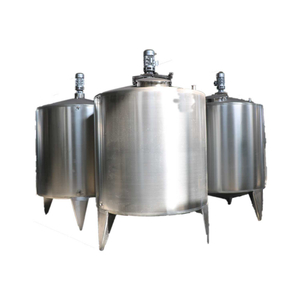

3Barrels gas mixing machine

QHS-3000 line beverage mixer is used to produce carbonation ratio mixing of various gas-containing beverages (water, syrup, carbon dioxide, etc.), such as lemon, cola, juice and other soda, which is the main equipment in the complete set of beverage production equipment. (Especially key equipment for medium and high-grade beverage production)

I. Technical performance and basic parameters

1. Production capacity: 3000Kg/h

2, syrup and water ratio adjustment range: 1:3 -- 1:10

3, gas content: CO2: H2O volume ratio > 2.5

4, mixing accuracy: ≤2%

5, chilled water inlet temperature: 0~4℃

6, chilled water inlet pressure: 0.01-0.08mpa

7, syrup inlet temperature: 2-8 ℃

8, syrup inlet pressure: 0.01-0.08mpa

9, carbon dioxide inlet pressure: 0.7-0.8mpa

10, carbon dioxide purity: > 99.9%

11, pre-carbonization tank, syrup tank working pressure: 0.05-0.09mpa

12. Working pressure of storage tank: 0.2-0.5mpa

13. The total motor power is 4Kw

14. Overall size (length × width × height) : 1700×1450×2050

15. Weight: 360Kg

QHS-30003T
