Working Steps of Hp Inner Washing Machine with External Brushing for 5gallon

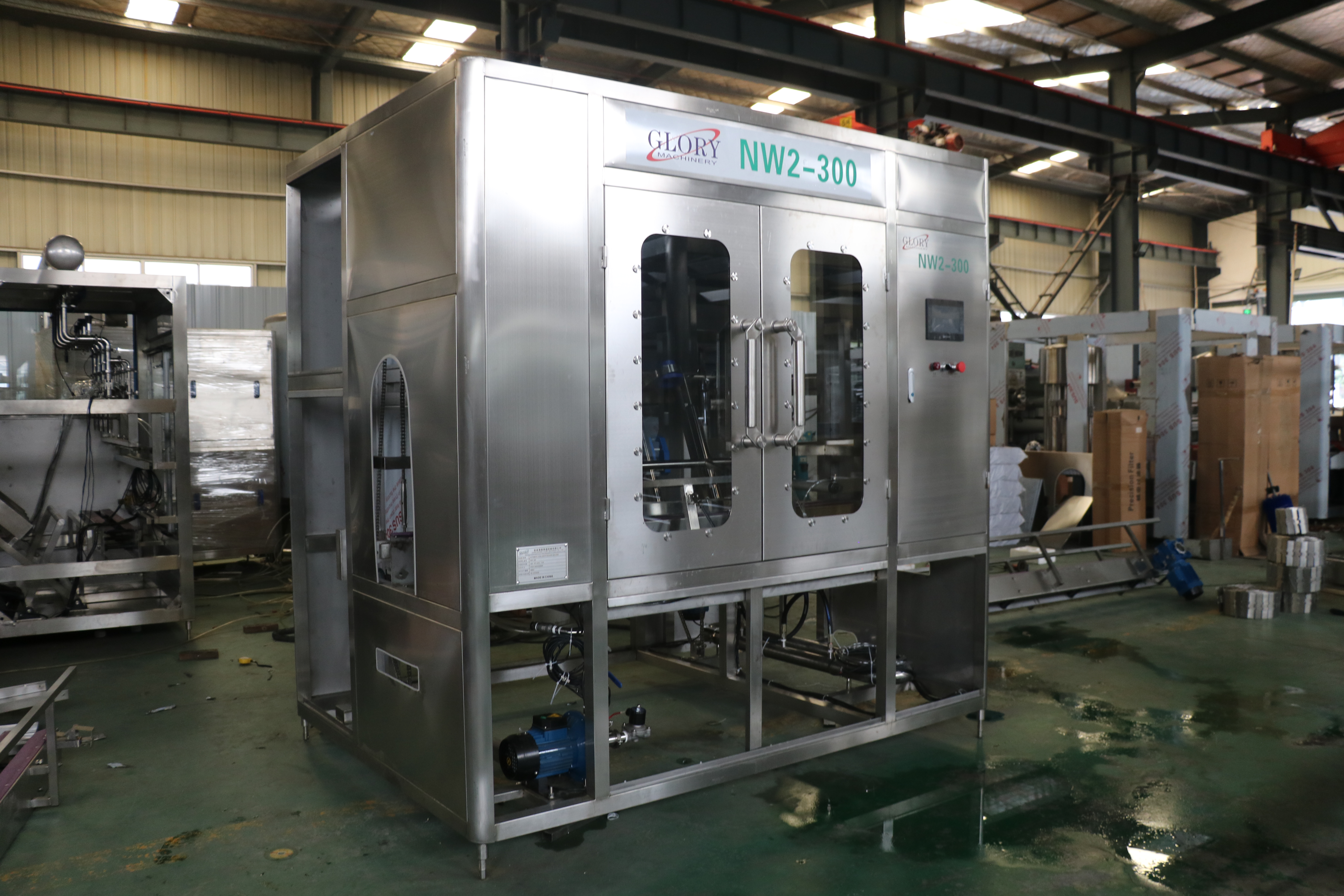

This equipment is a 5 gallon dedicated bucket brush machine, mainly made of 304 material. It has an attractive appearance, a reasonable structure, is easy to operate, and features automatic control. The main components are imported. It is an integrated machine with high internal pressure and external brushing, which reduces the user's usage area. It is an ideal accessory for five-gallon filling machines.

Under the conveying effect, the barrels enter the barrel brush machine. After the photoelectric detection detects that six barrels have entered, the bucket-blocking cylinder extends out, and the bucket-pushing cylinder pushes the barrels into the bucket-flipping mechanism. The main shaft flips 180 degrees, and the bucket-flipping mechanism turns the barrel opening downward and presses it against the outer brush. As the outer brush rotates, it drives the barrels to rotate. Once in place, the lifting motor lifts the high-pressure nozzle assembly and extends it into the barrel for operation, spraying high-pressure water. Run up and down for scrubbing, and the scrubbing time of the bucket is adjustable.
