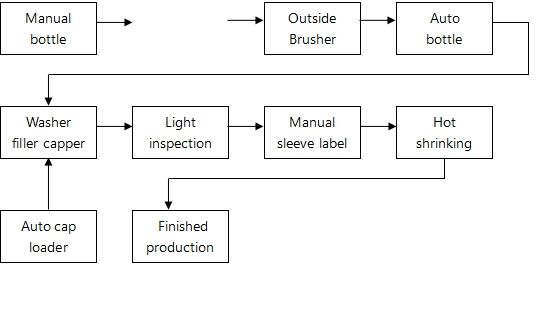

Flow chart of the 5 gallon drinking water filling line:
Automatic de-capper machine
BG series automatic de-capper machine is specially designed to match the barreled production line for 5 gallons barreled drinking water, particularly suitable for automatic de-cap before recycling barrels for cleaning. It remarkably improves productivity, reduces the secondary pollution caused by manual cap removal to a larger extent, and lessens the labor intensity of operators. The use of top quality stainless steel for the whole machine guarantees its anti-corrosion and easiness of cleaning.
Working steps:
The empty bottle is transported into automatic de-capping machine by conveyor chain .when barrel detected by count sensor ,the barrel blocking cylinder will work and block and stop the barrel which is on conveying belt , then cap removing cylinder works downwards and makes removing heads cover cap . After cap catching cylinder works downwards and catches cap tightly , cap removing cylinder works upwards and removes cap , meantime ,cap blowing electro-magnetic valve open and blow removed cap into container , the barrel removed cap outlets by conveyor belt .
Main technical parameters
Number of puller heads | 1 |
Type and dimensions of barrel | φ276×490(5gallon) |
De-capping capacity | 300-600bph |
Air source：Pressure | 0.6~0.8Mpa |
Structural Form | Cylinder acting |
External Dimensions(mm) | 850×600×1800 |
Weight | Approx.800kgs |
Main material | SS 304 |
Power | 380V |
Automatic external washing machine
ST series full automatic outside brushing machine is affiliated production facility for 5gallon barrel packing production line , for 5 gallon barrel . Both barrel top and bottom of the body can be brushed ,it is especially suitable for producing mineral water , it can greatly reduce second pollution caused by ,manual brushing and can reduce work labors.the machine is made of excellent quality of SS ,
Working steps :
The barrels into by conveying chain from automatic de-capping machine , it will accomplish washing all part of barrel by mean of one turn around washing position after barrel pushes into by star wheel , there are brushers for brushing from neck t bottom ,after brushing ,barrel push into washing position and clear up washing liquid , the machine is prewashing equipment for barrel dink water filling production line , it is composed of transmission mechanism , brush water pump and so on , it sets functional brush such as main brush , bottle brush and side brush , brushes made by high-strength elasticity nylon
will not easy to cause deformation with good decontamination effect ,attractive and durable , and no damage to barrel .rotating brushes washing external barrel realizes all around washing barrels by help of spraying water and keep washing quality stability .
Main parameters
Model | ST-series |
Capacity | 300 |
Air consumption | 0.7Mpa |
Power | 0.75kw |
Size | 1850*1100*2150 |
Weight | about 300kgs. |
Main material | SS 304 ,high strength elastic nylon |
Summary For washing filling capping 3-in-1 machine
QGF-series type barreled water producing line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance.
Model | QGF-300 |
Theory capacity | 300BPH |
Filling heads | 2 |
Capping head | Pressing by chain |
Size of bottle φ | 276*490mm |
Power supply | 380V, 50Hz, Max power consumption 4 KW .heating :6kw Remark: Power consumption is only 3.5kw while the machine works as each electrical part starts intermittently |
Air pressure | 0.5~0.6Mp |
air consumption | 350L/M |
Overall dimension(mm) | 4500*1500*2200 |
.Automatic cap loading machine
In order to keep the clean of caps , we designed automatic cap loading machine ,the machine is composed by cap storage , lifter .the cap loading machine will load the caps automatically according to the production ,it is controlled by the computer.
Dimension :3200*1500mm
Power :0.18kw
Light Check
Model: DJ
The light check box adopts stainless steel protection outer garment with well lighted. It conforms to the hygiene standard of the country and be able to easily check the impurities, defect and granule inner and outer of the barrel.
Dimension :700*1000*100mm
Hot Shrinking Machine
Model: SM-1
The temperature of thermal shrinking machine is adjustable continuously, which adapts different types of thermal shrinking film and various speeds. It adopts high temperature material with good tempers of heat-protecting and low-energy consuming.
